Project Description

DN50 single orifice air release valve with isolation valve, which can be used in water supply and drainage project.

DN50 single orifice air release valve with isolation valve technical specification:

Size:DN50-80

Design standard: EN1074-4:2000

Flange standard: EN1092-2:1997

Testing standard: EN12266-1:2012

Working pressure: 16kgs/cm3

                Shell testing pressure: 25kgs/cm3

                Seat test pressure: 18kgs/cm3

                Media: water, neutral oil

External and internal coating: 100% fusion-bonded EPOXY

SS304/316 bolts/nuts/washers are available on request

DN50 single orifice air release valve with isolation valve Material List

Body:Ductile Iron BS2879-500.7/DIN1693 GGG50/EN1563 GJS500

Float guide:ABS

Isolation valve: brass

O-ring: EPDM BS2494

Cover:Ductile Iron BS2879-500.7/DIN1693 GGG50/EN1563 GJS500

Bolts and Nut: Zinc-plated steel BS4190

Seat: EPDM BS2494

Gasket: EPDM BS2494

Cap:Nylon/brass

Bracket: Nylon

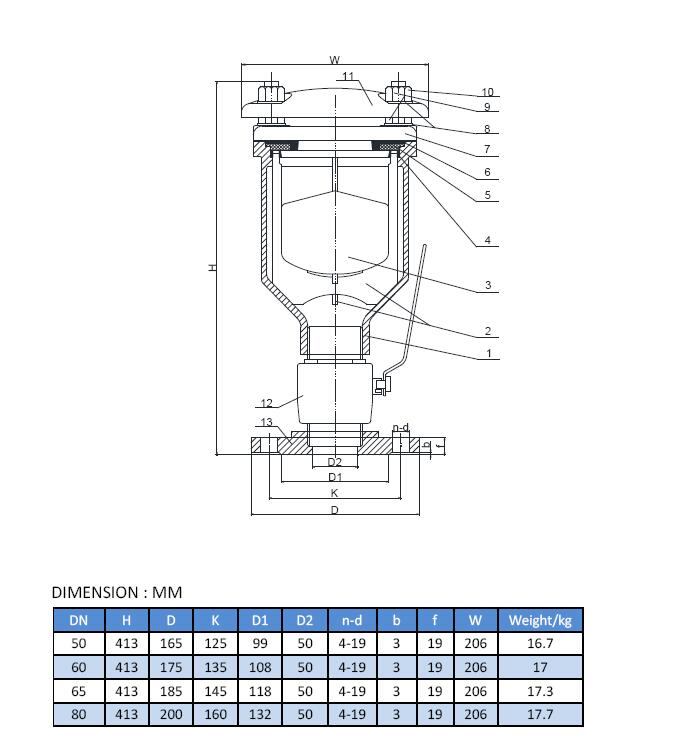

DN50 single orifice air valve size
